ImplicitIntegration

Overview

This package provides an integrate function to approximate volume and surface integrals over implicitly defined domains in arbitrary dimensions. More specifically, it allows for the computation of volume integrals of the form

\[ \int_{\phi(\boldsymbol{x}) < 0 \ \cap \ U} f(\boldsymbol{x}) \, \mathrm{dV},\]

and surface integrals of the form

\[ \int_{\phi(\boldsymbol{x}) = 0 \ \cap \ U} f(\boldsymbol{x}) \, \mathrm{dS},\]

where $\phi : \mathbb{R}^d \to \mathbb{R}$ is a level-set function implicitly defining the surface, and $U = [a_1, b_1] \times \ldots \times [a_d, b_d]$ is a bounding HyperRectangle.

Installation

To install the package, open the Julia REPL and run:

using Pkg; Pkg.add("ImplicitIntegration");

Basic usage

integrate

The main function provided by this package is integrate, which computes implicit integrals using an adaptive quadrature method. Here is how you can use it to compute the volume of a sphere:

using ImplicitIntegration, StaticArrays
ϕ = (x) -> x[1]^2 + x[2]^2 + x[3]^2 - 1
f = (x) -> 1
lc = (-1.1, -1.1, -1.1)
hc = (1.1, 1.1, 1.1)
int_volume  = integrate(f, ϕ, lc, hc; loginfo = true)

The integrate function returns a NamedTuple object containing the value of the integral in val, as well as a logger object containing information about the computation:

println("Computed volume:  $(int_volume.val)")
println("Error of volume:  $(int_volume.val - 4π/3)")
println(int_volume.logger)

Computed volume:  4.188790204786464
Error of volume:  7.37188088351104e-14
LogInfo:
|- Subdivisions:
|-- Dimension 1: 8 subdivisions
|-- Dimension 2: 24 subdivisions
|-- Dimension 3: 31 subdivisions

To compute a surface integral instead, simply set the surface keyword argument to true:

int_surface = integrate(f, ϕ, lc, hc; surface = true, loginfo = true)
println("Computed surface: $(int_surface.val)")
println("Error of surface: $(int_surface.val - 4π)")
println(int_surface.logger)

Computed surface: 12.56637061435912
Error of surface: -5.3290705182007514e-14
LogInfo:
|- Subdivisions:
|-- Dimension 1: 8 subdivisions
|-- Dimension 2: 24 subdivisions
|-- Dimension 3: 31 subdivisions

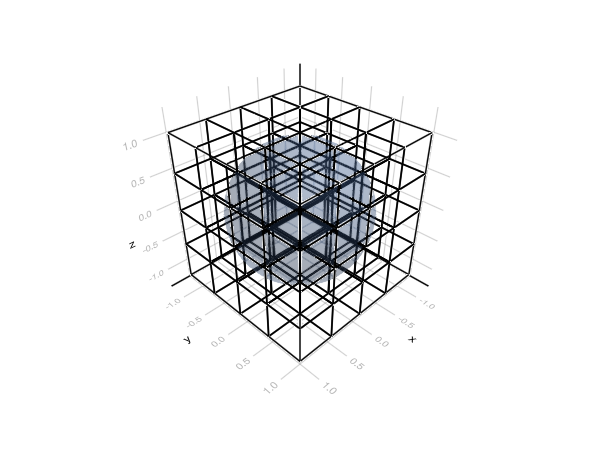

It is also possible to visualize the computed tree structure by loading one of Makie's backends and calling the plot method on the logger object (mostly useful for debugging purposes):

using GLMakie
# plot the surface
vv = [ϕ(SVector(x, y, z)) for x in lc[1]:0.1:hc[1], y in lc[2]:0.1:hc[1], z in lc[3]:0.1:hc[1]]
volume((lc[1], hc[1]), (lc[2], hc[2]), (lc[3], hc[3]), vv, algorithm = :iso, transparency = true, alpha = 0.4, isovalue = 0)
# then the boxes
plot!(int_surface.logger)

quadgen

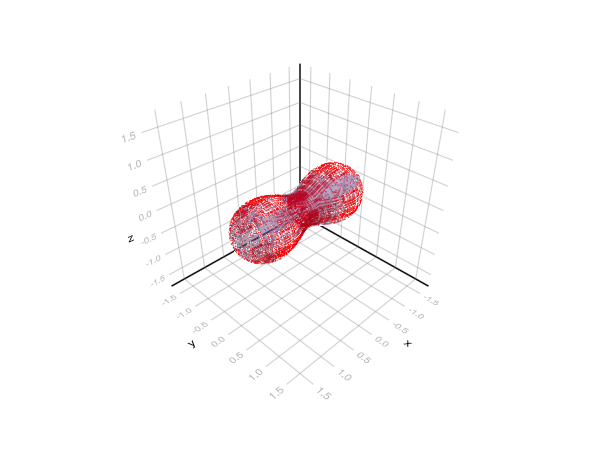

For situations where you need to compute the integrals of multiple functions over the same domain, you can use quadgen to generate a quadrature instead. It works similarly to integrate, but returns a Quadrature object instead of the integral value. Here is how to create a surface quadrature for a Cassini oval in 3D:

using ImplicitIntegration, StaticArrays
using GLMakie, LinearAlgebra
p1 = SVector(-1.0, 0, 0)
p2 = SVector(1.0, 0, 0)
b = 1.1
ϕ = x -> (x - p1) ⋅ (x - p1) * (x - p2) ⋅ (x - p2) - b^2
quad, logger = quadgen(ϕ, (-2, -2, -2), (2, 2, 2); order = 5, surface = true, loginfo=true)
xx = yy = zz = range(-1.5, 1.5, length = 200)
vv = ϕ.(SVector.(Iterators.product(xx, yy, zz)))
volume((xx[1],xx[end]), (yy[1],yy[end]), (zz[1],zz[end]), vv, algorithm = :iso, transparency = true, alpha = 0.4, isovalue = 0)
scatter!(quad.coords, markersize = 2, color = :red)

See the quadgen docstrings for more information on the available options.

Going further

The basic usage examples above, as well as the docstrings for the integrate and quadgen functions, should be enough to get you started with the package. There are cases, however, where you may want to overload the default behavior for your custom types, and that is covered in the Specializations section. Of particular interest is the case where the implicit function is a polynomial, in which case ImplicitIntegration provides a special BernsteinPolynomial type that can be used to improve the performance of the integration and quadrature methods; see the Bernstein polynomials section for more details.
