Importance of tight bounds

The algorithm for implicit integration is described in [1] relies on the ability to compute bounds on the implicit function and its derivatives over a hyper-rectangle. Bounds on the implicit function are used to determine whether a box is empty or full, in which case a subdivision is not necessary. Bounds on the gradient are used to determine if a height direction exists for the dimensional reduction step, in which case the problem is recursively reduced to a lower dimension. If the algorithm is unable to prove that a box is empty, full, or that a height direction exists, it subdivides the box and repeats the process on the sub-boxes. The tightness of the bounds therefore directly affects the efficiency of the algorithm, as tighter bounds lead to fewer subdivisions.

ImplicitIntegration provides a generic method for bounding functions and their derivatives using automatic differentiation via ForwardDiff and range estimation with IntervalArithmetic. While this approach has the advantage of being rather generic, the resulting bounds are often conservative and may lead to unnecessary subdivisions during the quadrature generation process.

For specific classes of functions, we can leverage additional mathematical properties to compute tighter bounds more efficiently. These specialized bounds can significantly improve the performance of implicit integration, reducing both the computational cost and the number of quadrature points needed for accurate results.

This section describes the interface for implementing custom bounds for specific function types, and discuss one such specialization already implemented in the package: Bernstein polynomials.

Interface

To implement specialized bounds for a specific function type, you need to overload the following methods:

bound(f::MyType, lc, hc) --> (fmin, fmax): Compute bounds for the function f over the hyperrectangle defined by lower corner lc and upper corner hc.
gradient(f::MyType) --> ∇f: Compute the gradient of the function f as a function. The returned object ∇f should support evaluation on the form ∇f(x) where x is a point in the domain of f, and bound(∇f, lc, hc).
project(f, k, v): Project the function f onto the k-th coordinate using the value v. The returned object should support bound, gradient, and project methods, allowing it to be used in the same way as the original function.
split(f, lb, ub, dir) --> fₗ, fᵤ: Split the function f along the specified direction dir into two parts, one for the lower half and one for the upper half of the hyperrectangle defined by lb and ub. The returned objects should also support bound, gradient, and project methods.

Disabling default implementations

When implementing the interface for a specific function type, you may want to disable the default implementations provided by ImplicitIntegration to make sure you have correctly overloaded the proper methods. You can do this by calling disable_default_interface(). To re-enable the default interface, use enable_default_interface().

Bernstein polynomials

Because the Bernstein basis forms a partition of unity, computing the upper and lower bounds of a Bernstein polynomial is particularly simple and only requires evaluating the extrema of the Bernstein coefficients. Such a bound is usually much tighter than the bounds obtained by interval arithmetic. ImplicitIntegration provides a BernsteinPolynomial type that implements the interface described above; see the bernstein.jl file in src for the implementation details.

There are several ways to construct a BernsteinPolynomial object. The most direct one is to directly provide an array containing the Bernstein coefficients:

using ImplicitIntegration
lb = (-1.0, -1.0)
ub = (1.0, 1.0)
c  = rand(3,3) # Bernstein coefficients
p = ImplicitIntegration.BernsteinPolynomial(c, lb, ub)

Bernestein polynomial of degree (2, 2) on [-1.0,1.0] × [-1.0,1.0]

The polynomial can now be evaluated at a point x

x = (0.5, 0.5)
p(x)

0.31913966992011117

or bounded over its domain:

ImplicitIntegration.bound(p)

(0.08446731187611345, 0.9881983604210484)

Another way to create a BernsteinPolynomial is to interpolate a function over the grid points using berninterp, as illustrated below:

lb = (-1.0, -1.0)
ub = (1.0, 1.0)
npts = (4,4)
interp_pts = ImplicitIntegration.uniform_points(npts, lb, ub)
f = x -> x[1]^2 + x[2]^2 - 1.0 # implicit function
p = ImplicitIntegration.berninterp(f.(interp_pts), lb, ub)

Bernestein polynomial of degree (3, 3) on [-1.0,1.0] × [-1.0,1.0]

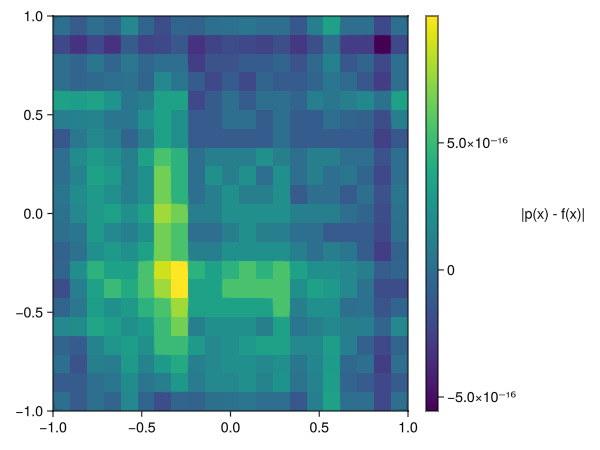

Since in this example f is itself a polynomial, and we interpolate it using a polynomial of higher degree, the interpolant should be exact (up to rounding errors):

using GLMakie
xx = lb[1]:0.05:ub[1]
yy = lb[2]:0.05:ub[2]
vals = [p((x,y)) - f((x,y)) for x in lb[1]:0.1:ub[1], y in lb[2]:0.1:ub[2]]
fig, ax, hm = heatmap(xx, yy, vals)
Colorbar(fig[1,2], hm; label = "|p(x) - f(x)|", labelrotation = 0)

Increasing the interpolation degree

The berninterp function illustrated above performs polynomial interpolating using a Bernstein basis on a uniform grid. As is well known, the Lebesgue constant for such interpolants grows exponentially with the polynomial degree. In this package you usually want to use the berninterp function with a fixed degree, and decrease mesh size parameter to obtain convergence. An alternative, not yet implemented, is to interpolate the function on a Chebyshev grid, and then convert the resulting Chebyshev polynomial into the Bernstein form.

Finally, ImplicitIntegration can automatically handle polynomials constructed using the DynamicPolynomials.jl package. When you use types from this package, the implicit function is automatically converted to a BernsteinPolynomial for bounds computation. This allows for efficient integration of polynomial implicit functions without requiring manual conversion to the Bernstein form. This specialization provides tighter bounds for the function value and its gradient, helping the recursive subdivision algorithm to stop earlier. The following example illustrates this difference in practice:

using ImplicitIntegration, StaticArrays
using GLMakie, LinearAlgebra, DynamicPolynomials
p1 = SVector(-1.0, 0)
p2 = SVector(1.0, 0)
b = 1.01
ϕ = x -> (x - p1) ⋅ (x - p1) * (x - p2) ⋅ (x - p2) - b^2
@polyvar x y
poly = ((x,y) .- p1) ⋅ ((x,y) .- p1) * ((x,y) .- p2) ⋅ ((x,y) .- p2) - b^2
quad, logger = quadgen(ϕ, (-2, -2), (2, 2); order = 1, surface = true, loginfo=true)
quad_poly, logger_poly = quadgen(poly, (-2, -2), (2, 2); order = 1, surface = true, loginfo=true)
## plot
fig = Figure()
ax1 = Axis(fig[1, 1], aspect = DataAspect(), title = "Default bounds", xlabel = "x", ylabel = "y")
scatter!(ax1, quad.coords, markersize = 10, color = :red)
plot!(ax1, logger)
ax2 = Axis(fig[1, 2], aspect = DataAspect(), title = "Bernstein bounds", xlabel = "x", ylabel = "y")
scatter!(ax2, quad_poly.coords, markersize = 10, color = :red)
plot!(ax2, logger_poly)

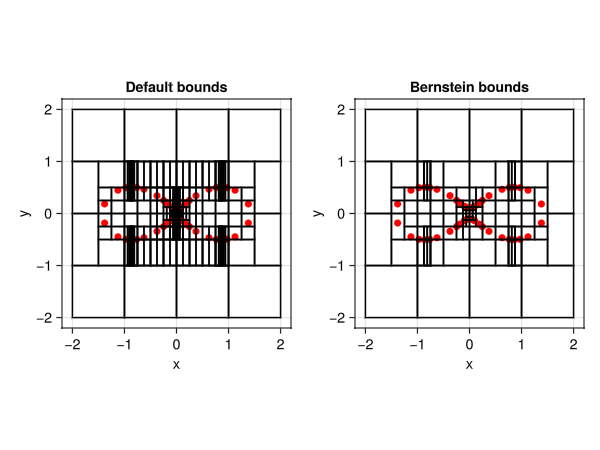

The figure above illustrates the difference between using default bounds (based on interval arithmetic) and Bernstein polynomial bounds for quadrature generation (triggered by passing a DynamicPolynomial.Poly object to quadgen). The right panel shows how using Bernstein polynomial bounds results in more efficient and accurate quadrature points (red dots) around the zero level set of the implicit function. Note the significant reduction in the number of evaluated boxes and the tighter approximation of the curve.
