Level-set terms

A level-set equation is given by

\[ \phi_t + \sum_n \texttt{term}_n = 0\]

where each $\texttt{term}_n$ is a LevelSetTerm object. The following terms are available:

using LevelSetMethods
subtypes(LevelSetMethods.LevelSetTerm)
4-element Vector{Any}:
 AdvectionTerm
 CurvatureTerm
 NormalMotionTerm
 ReinitializationTerm

Here we investigate the meaning of each term, and how they can be used to model different phenomena.

Advection

The simplest term is the advection term, which is given by

\[ \mathbf{u} \cdot \nabla \phi\]

where $\mathbf{u}$ is a velocity field. This term models the transport of the level-set by an external velocity field (see [1, Chapter 3]). You can construct an advection term using the AdvectionTerm structure:

using LevelSetMethods, StaticArrays
grid = CartesianGrid((-1,-1), (1,1), (100, 100))
𝐮 = MeshField(x -> SVector(1,0), grid)
AdvectionTerm(𝐮)
𝐮 ⋅ ∇ ϕ

In the example above we passed a MeshField object to the AdvectionTerm constructor, meaning that the velocity field is simply a vector of values at each grid point. This is useful if your velocity field is time-independent, or if you only know it at grid points. Lets construct a level-set equation with an advection term:

ϕ₀ = LevelSet(x -> sqrt(x[1]^2 + x[2]^2) - 0.5, grid)
eq = LevelSetEquation(; terms = (AdvectionTerm(𝐮),), levelset = ϕ₀, bc = PeriodicBC())
Level-set equation given by

 	 ϕₜ + 𝐮 ⋅ ∇ ϕ = 0

Current time 0.0

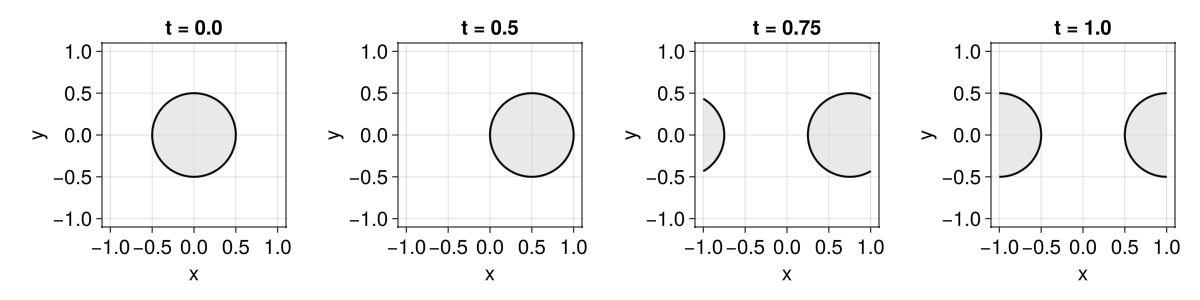

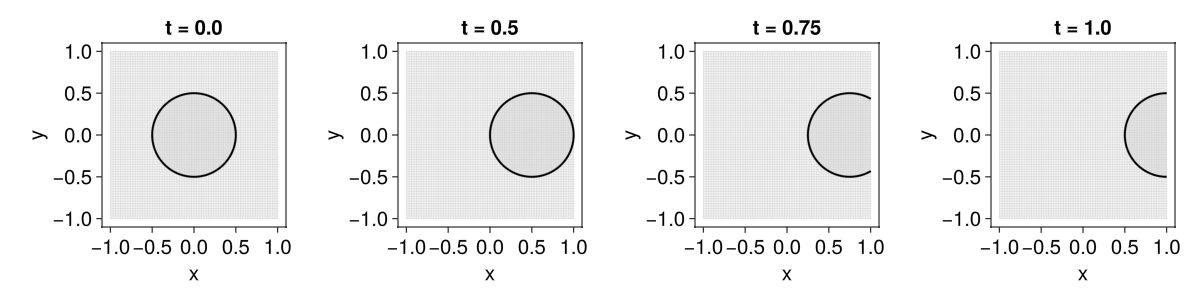

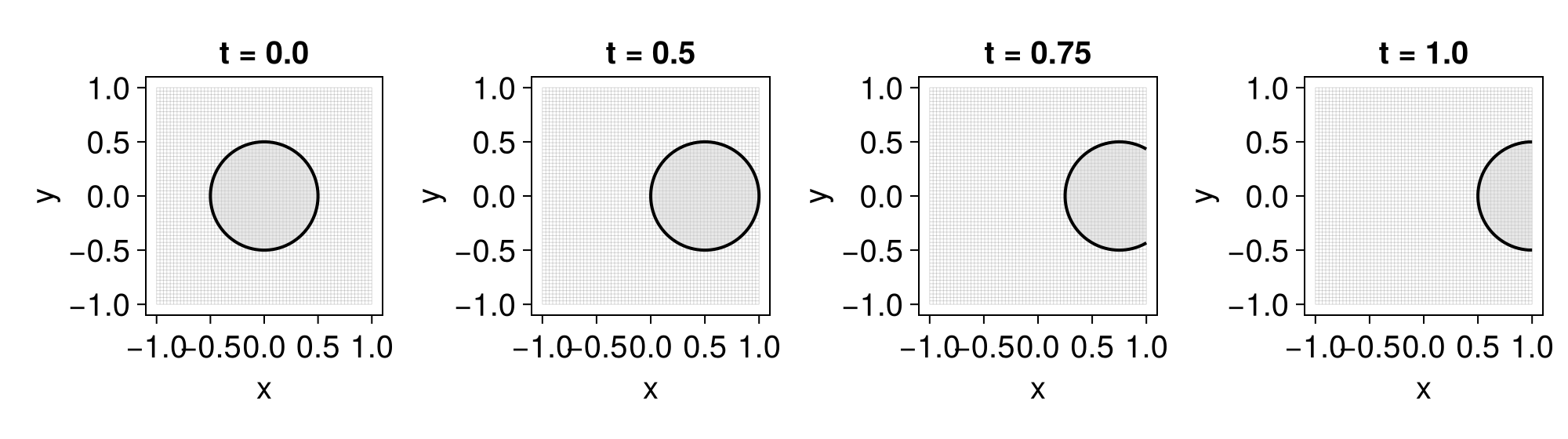

To see how the advection term affects the level-set, we can solve the equation for a few time steps:

using GLMakie
LevelSetMethods.set_makie_theme!()
fig = Figure(; size = (1200, 300))
# create a 2 x 2 figure
for (n,t) in enumerate([0.0, 0.5, 0.75, 1.0])
    I = CartesianIndices((2,2))[n]
    integrate!(eq, t)
    # ax = Axis(fig[I[1],I[2]])
    ax = Axis(fig[1,n], title = "t = $t")
    plot!(ax, eq)
end
fig

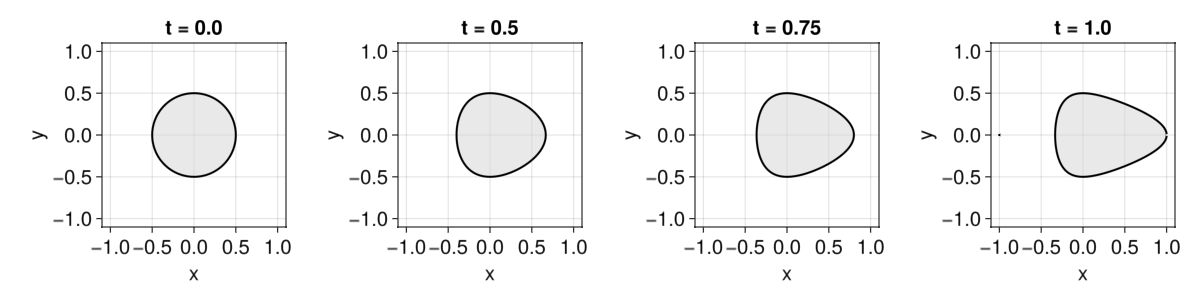

Example block output

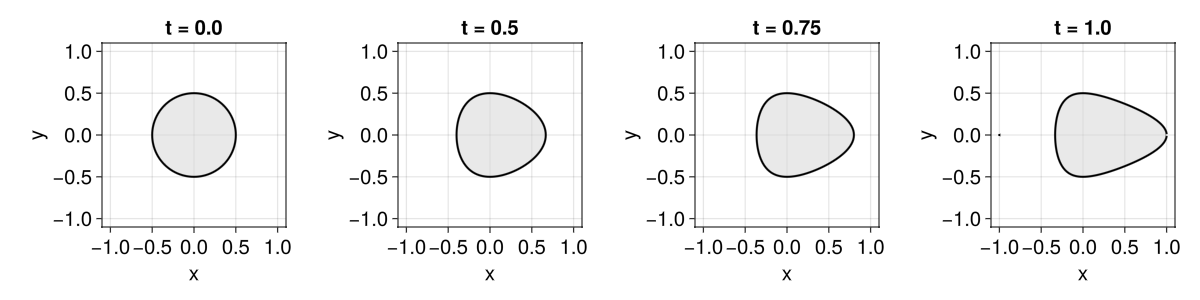

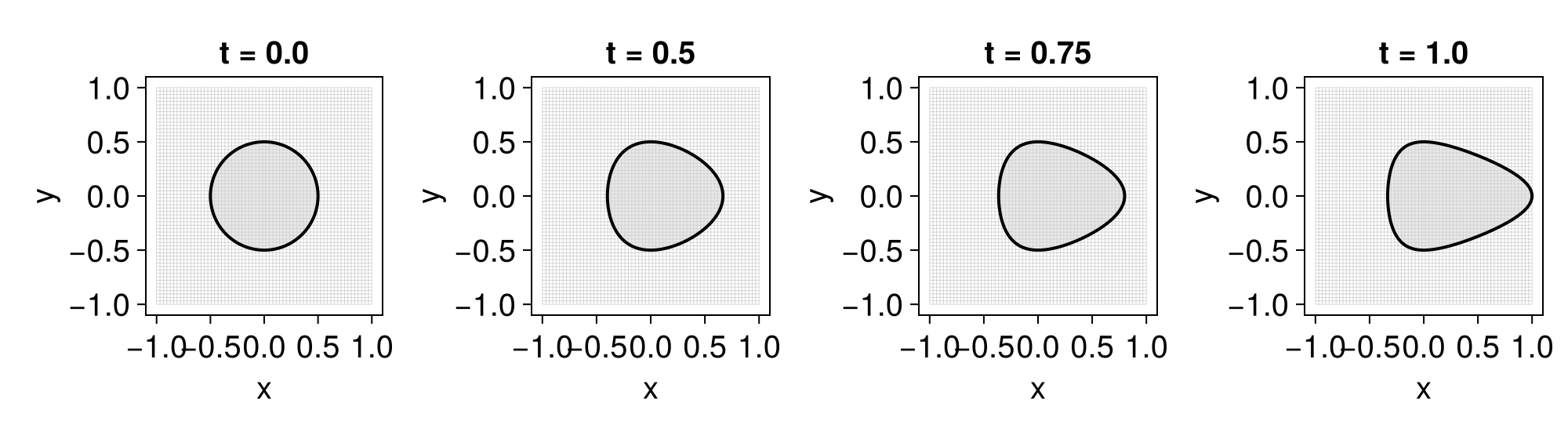

In the example above we see that the level-set is advected to the right. If we wanted to have instead a time-dependent velocity field, we could pass a function to the AdvectionTerm, and the velocity field would be computed at each time step. For example:

ϕ₀ = LevelSet(x -> sqrt(x[1]^2 + x[2]^2) - 0.5, grid)
eq = LevelSetEquation(; terms = (AdvectionTerm((x,t) -> SVector(x[1]^2, 0)),), levelset = ϕ₀, bc = PeriodicBC())
fig = Figure(; size = (1200, 300))
# create a 2 x 2 figure
for (n,t) in enumerate([0.0, 0.5, 0.75, 1.0])
    I = CartesianIndices((2,2))[n]
    integrate!(eq, t)
    ax = Axis(fig[1,n], title = "t = $t")
    plot!(ax, eq)
end
fig

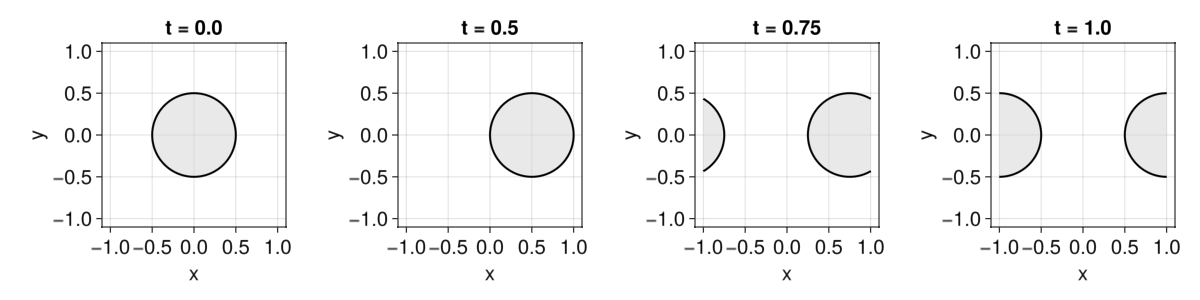

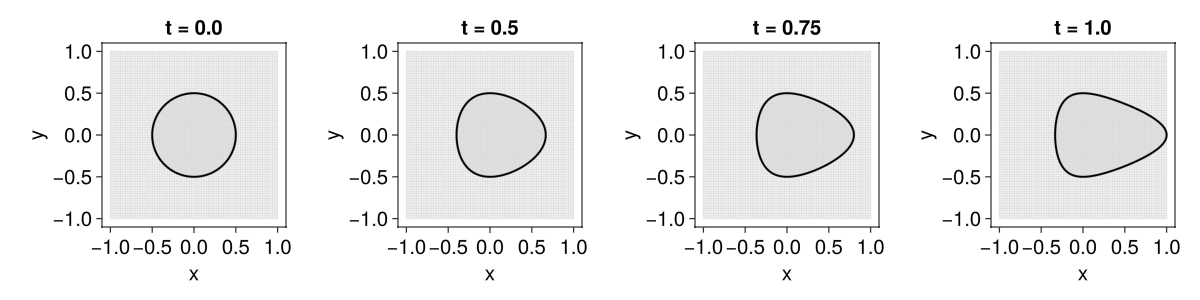

Example block output

Note that the velocity function must accept two arguments: the spatial coordinates x, which is an abstract vector of length d, and the time t. Furthermore, it should return a vector of length d.

Besides the velocity field, the AdvectionTerm constructor also accepts a scheme as a second argument to specify the discretization scheme. The available options are:

  • Upwind(): first-order upwind scheme
  • WENO5(): fifth-order WENO scheme (default)

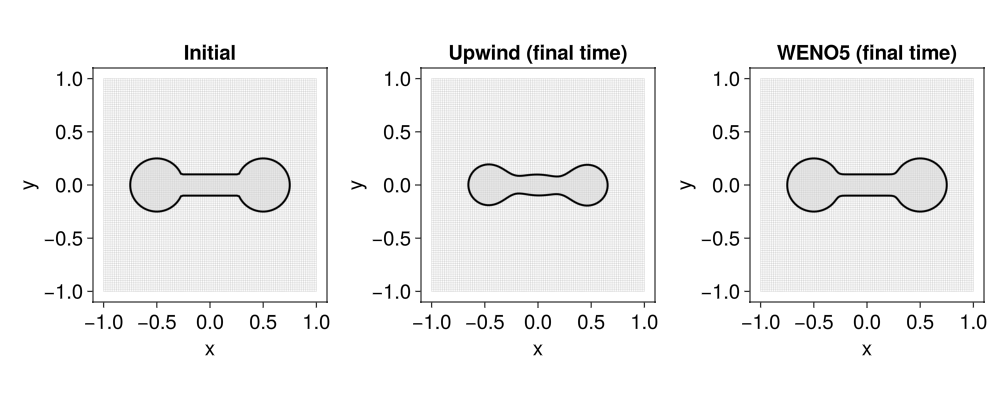

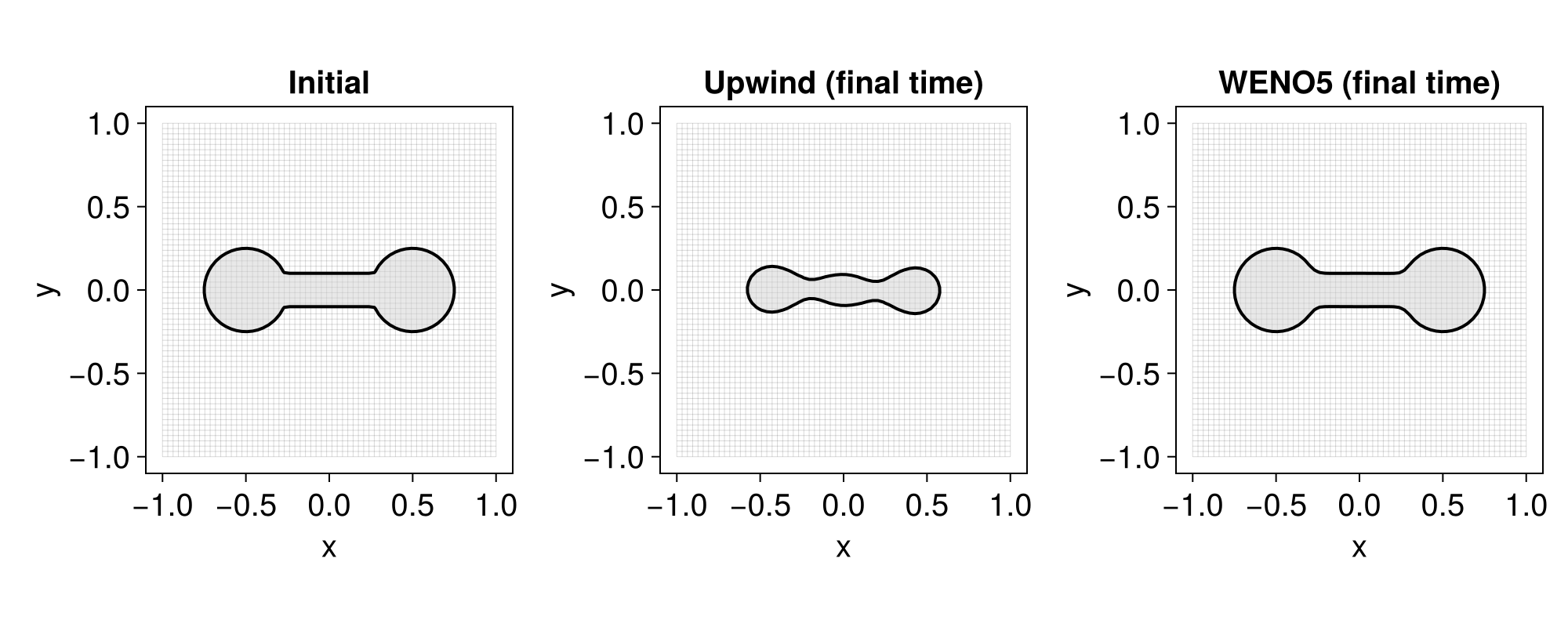

The WENO scheme is more expensive but much more accurate and is usually preferable to the upwind scheme, which introduces significant numerical diffusion. To see their differences, let us compare both schemes for a purely rotational velocity field:

ϕ₀ = LevelSetMethods.dumbbell(grid) # pre-defined level-set
𝐮  = MeshField(grid) do (x,y)
    SVector(-y, x)
end
eq_upwind = LevelSetEquation(; terms = AdvectionTerm(𝐮, Upwind()), levelset = deepcopy(ϕ₀), bc = PeriodicBC())
eq_weno   = LevelSetEquation(; terms = AdvectionTerm(𝐮), levelset  = deepcopy(ϕ₀), bc = PeriodicBC())
fig = Figure(size = (1000, 400))
ax = Axis(fig[1,1], title = "Initial")
plot!(ax, eq_upwind)
# do half a revolution
tf = π
ax = Axis(fig[1,2], title = "Upwind (final time)")
integrate!(eq_upwind, tf)
plot!(ax, eq_upwind)
ax = Axis(fig[1,3], title = "WENO5 (final time)")
integrate!(eq_weno, tf)
plot!(ax, eq_weno)
fig

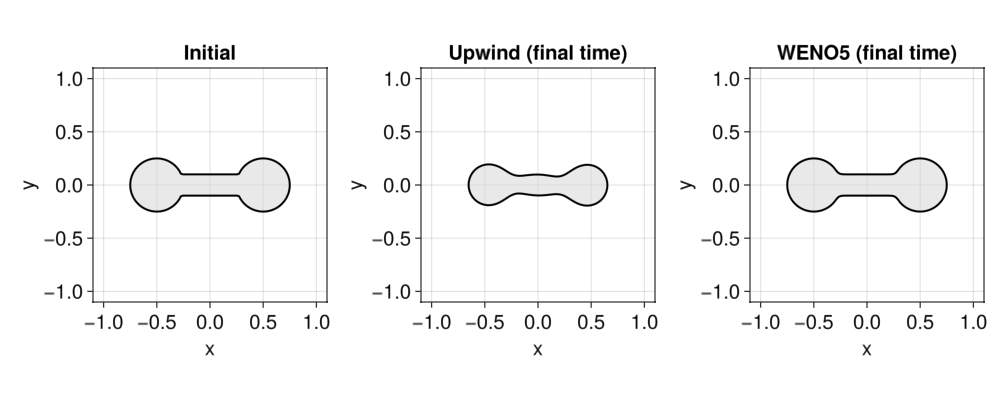

Example block output

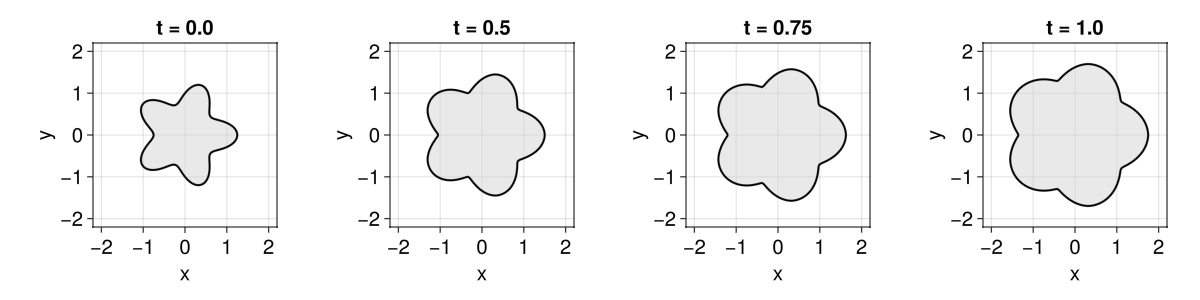

Normal motion

The normal motion term is given by

\[ v |\nabla \phi|\]

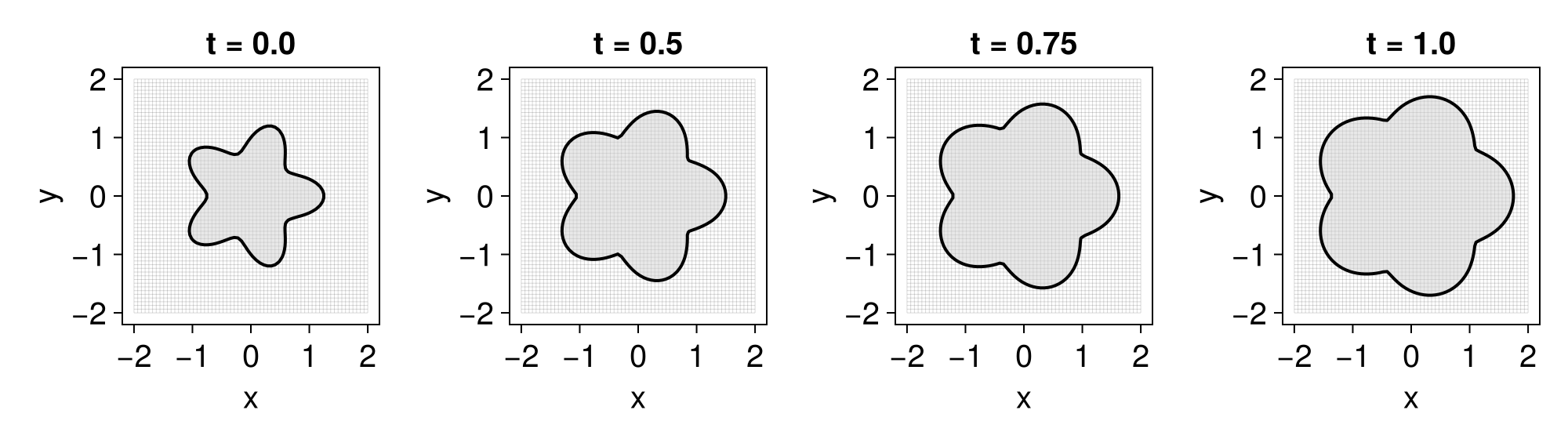

where $v$ is a scalar field. This term models the motion of the level-set in the normal direction (see [1, Chapter 6]). Here is an example of how to use it:

using LevelSetMethods
using GLMakie
grid = CartesianGrid((-2,-2), (2,2), (100, 100))
ϕ = LevelSetMethods.star(grid)
eq = LevelSetEquation(; terms = (NormalMotionTerm((x,t) -> 0.5),), levelset = ϕ, bc = PeriodicBC())
fig = Figure(; size = (1200, 300))
for (n,t) in enumerate([0.0, 0.5, 0.75, 1.0])
    integrate!(eq, t)
    ax = Axis(fig[1,n], title = "t = $t")
    plot!(ax, eq)
end
fig

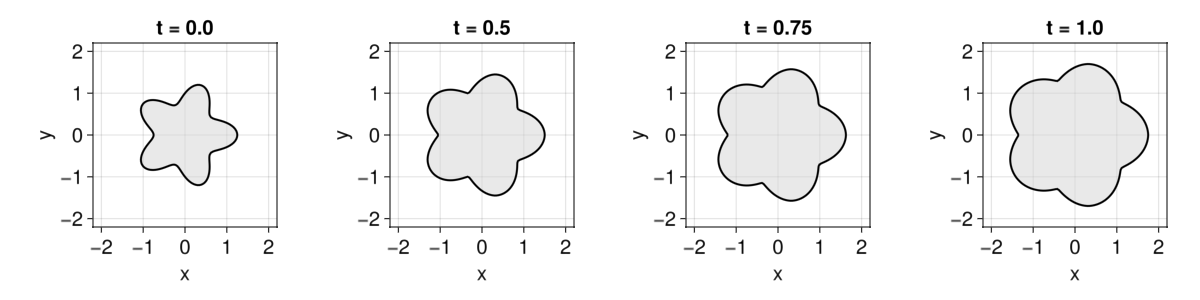

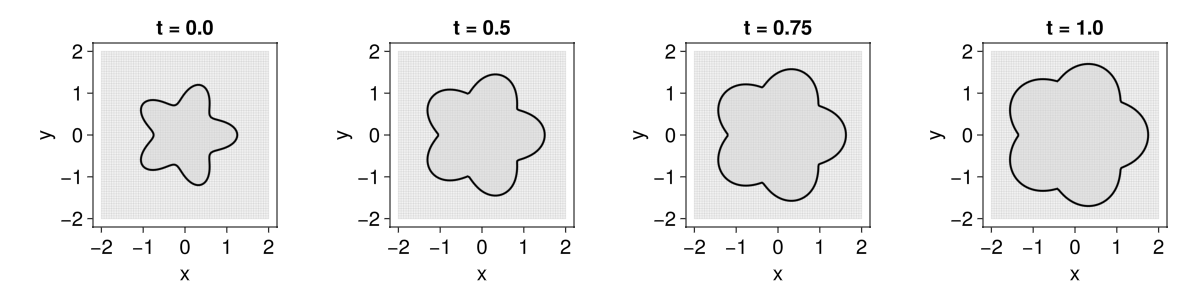

Example block output

Curvature motion

This terms models the motion of the level-set in the normal direction with a velocity that is proportional to the mean curvature:

\[ b \kappa |\nabla \phi|\]

where $\kappa = \nabla \cdot (\nabla \phi / |\nabla \phi|)$ is the mean curvature. Note that the coefficient $b$ should be negative; a positive value of $b$ would yield an ill-posed evolution problem (akin to a negative diffusion coefficient).

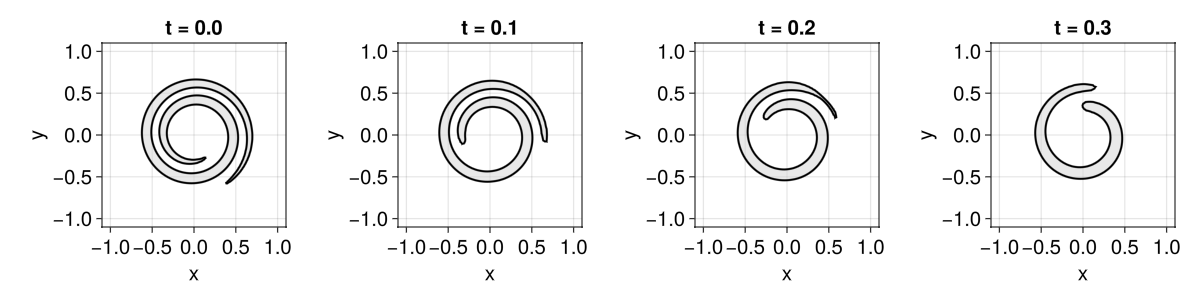

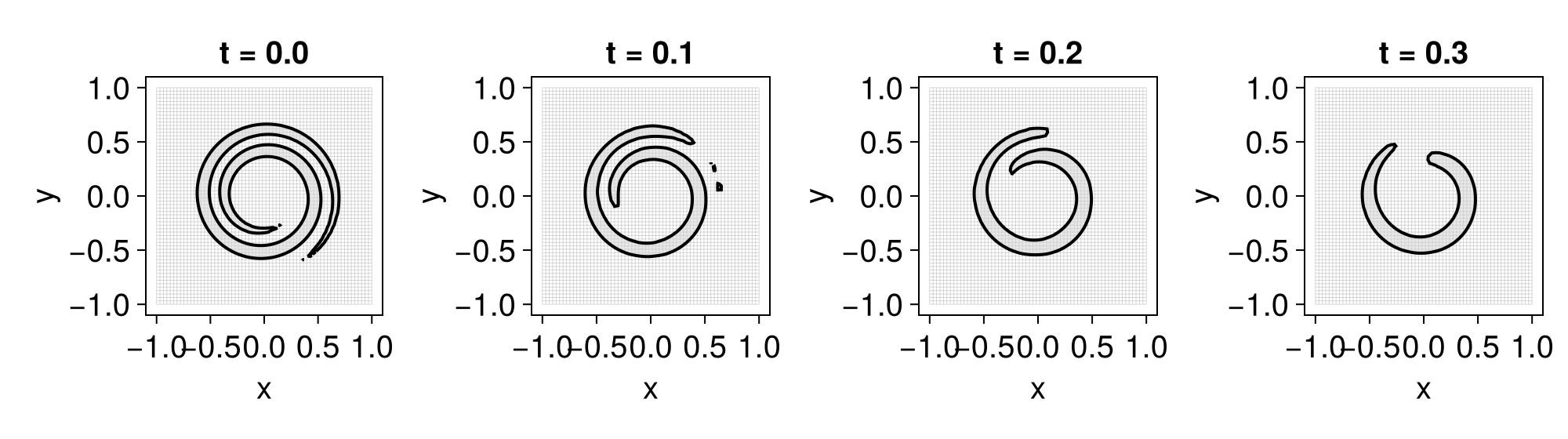

Here is the classic example of motion by mean curavature for a spiral-like level-set:

using LevelSetMethods, GLMakie
grid = CartesianGrid((-1,-1), (1,1), (100, 100))
# create a spiral level-set
d = 1
r0 = 0.5
θ0 = -π / 3
α = π / 100.0
R = [cos(α) -sin(α); sin(α) cos(α)]
M = R * [1/0.06^2 0; 0 1/(4π^2)] * R'
ϕ = LevelSet(grid) do (x, y)
    r = sqrt(x^2 + y^2)
    θ = atan(y, x)
    result = 1e30
    for i in 0:4
        θ1 = θ + (2i - 4) * π
        v = [r - r0; θ1 - θ0]
        result = min(result, sqrt(v' * M * v) - d)
    end
    return result
end
eq = LevelSetEquation(; terms = (CurvatureTerm((x,t) -> -0.1),), levelset = ϕ, bc = PeriodicBC())
fig = Figure(; size = (1200, 300))
for (n,t) in enumerate([0.0, 0.1, 0.2, 0.3])
    integrate!(eq, t)
    ax = Axis(fig[1,n], title = "t = $t")
    plot!(ax, eq)
end
fig

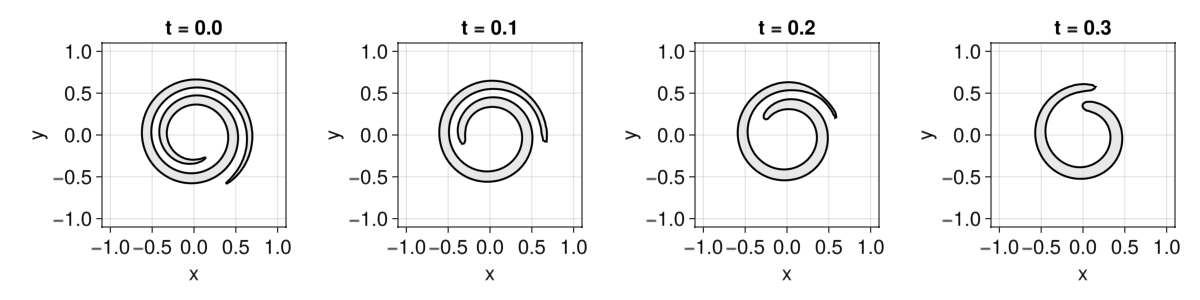

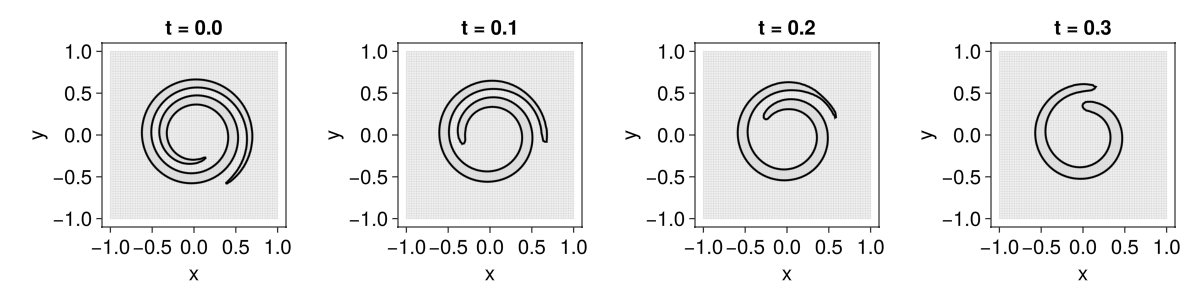

Example block output

Reinitialization term

The reinitialization term is given by

\[ \phi_t + \text{sign}(\phi) \left( |\nabla \phi| - 1 \right) = 0\]

This term is used to ensure that the level-set function remains close to a signed distance function, which is sometimes important for numerical stability. The idea of the evolution equation above is to penalize the deviation of the level-set from a signed distance function, where $|\nabla \phi| = 1$, without changing the zero level-set. In practice a smeared sign function is used; see [1, Chapter 7] for more details.

Here is an example of how to use the reinitialization term to obtain a signed distance function from a level-set. Let us first create a level-set that is not a signed distance, and its signed distance function:

using LevelSetMethods, GLMakie
grid = CartesianGrid((-1,-1), (1,1), (100, 100))
ϕ = LevelSet(x -> x[1]^2 + x[2]^2 - 0.5^2, grid) # circle level-set, but not a signed distance function
sdf = LevelSet(x -> sqrt(x[1]^2 + x[2]^2) - 0.5, grid) # signed distance function
LevelSetMethods.set_makie_theme!()
fig = Figure(; size = (800, 400))
ax = Axis(fig[1,1], title = "Signed distance function")
contour!(ax, sdf; levels = [0.25, 0, 0.5], labels = true, labelsize = 14)
ax = Axis(fig[1,2], title = "ϕ at t = 0")
contour!(ax, ϕ, levels = [0.25, 0, 0.5], labels = true, labelsize = 14)
fig

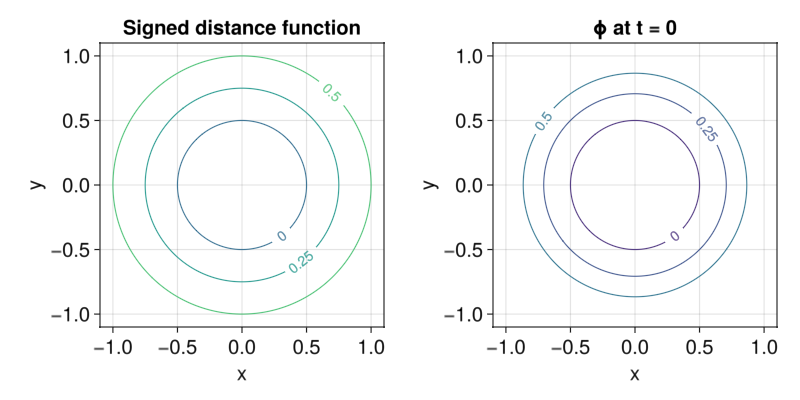

Example block output

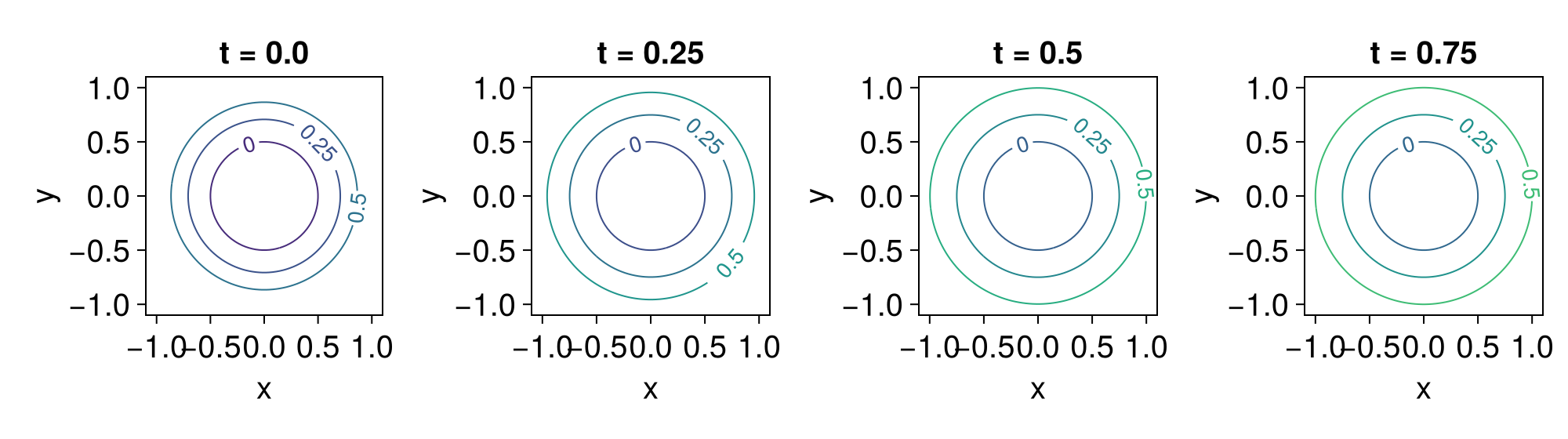

We will now evolve the level-set using the reinitialization term:

eq = LevelSetEquation(; terms = (ReinitializationTerm(),), levelset = ϕ, bc = PeriodicBC())
fig = Figure(; size = (1200, 300))
for (n,t) in enumerate([0.0, 0.25, 0.5, 0.75])
    integrate!(eq, t)
    ax = Axis(fig[1,n], title = "t = $t")
    contour!(ax, LevelSetMethods.current_state(eq); levels = [0.25, 0, 0.5], labels = true, labelsize = 14)
end
fig

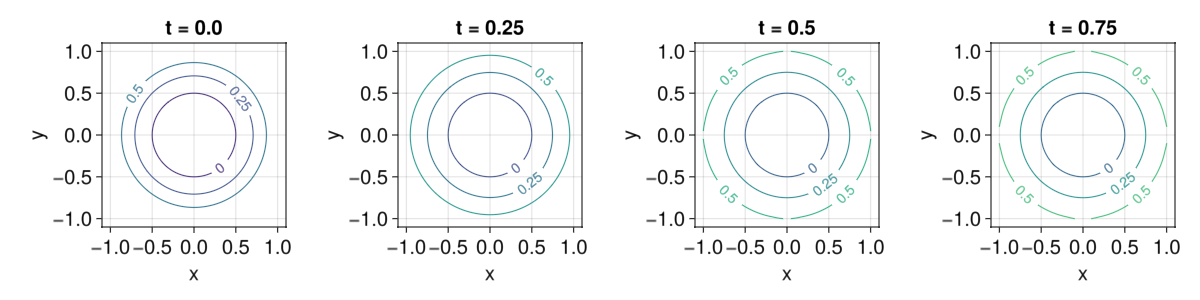

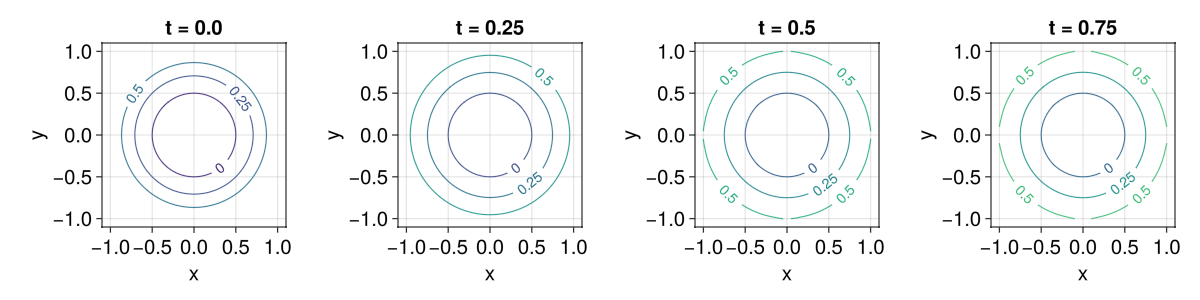

Example block output

Note that ϕ converges to the signed distance function sdf shown in the first figure.
