LevelSetMethods

LevelSetMethods.jl is a Julia package for representing and evolving implicitly defined domains in $\mathbb{R}^d$. Rather than tracking the boundary of a domain $\Omega$ directly, it represents $\Omega$ as the sub-zero region of a scalar level-set function $\phi$,

\[\Omega = \left\{\boldsymbol{x} \in \mathbb{R}^d : \phi(\boldsymbol{x}) < 0 \right\},\]

with the interface $\partial\Omega$ recovered as the zero contour $\{\phi = 0\}$. Moving the interface then amounts to evolving $\phi$ under a partial differential equation. Because the interface is never meshed or tracked explicitly, topological changes — merging, splitting, pinching off — happen automatically, which is the central appeal of the level-set method.

Installation

To install the library, run the following command on a Julia REPL:

using Pkg; Pkg.add("LevelSetMethods")

This will install the latest tagged version of the package and its dependencies.

For visualization, you may also want to install a Makie backend: CairoMakie is a good default for 2D figures and animations, while GLMakie is needed for the 3D isosurface plots.

Overview

This package defines a LevelSetEquation type that can be used to solve partial differential equations of the form

\[\phi_t + \underbrace{\boldsymbol{u} \cdot \nabla \phi}_{\substack{\text{advection} \\ \text{term}}} + \underbrace{v |\nabla \phi|}_{\substack{\text{normal} \\ \text{term}}} + \underbrace{b \kappa |\nabla \phi|}_{\substack{\text{curvature} \\ \text{term}}} + \underbrace{\text{sign}(\phi)(|\nabla \phi| - 1)}_{\substack{\text{reinitialization}\\ \text{term}}} = 0\]

where

  • $\phi : \mathbb{R}^d \times \mathbb{R}^+ \to \mathbb{R}$ is the level set function
  • $\boldsymbol{u} :\mathbb{R}^d \times \mathbb{R}^+ \to \mathbb{R}^d$ is a given (external) velocity field
  • $v : \mathbb{R}^d \times \mathbb{R}^+ \to \mathbb{R}$ is a normal speed
  • $b : \mathbb{R}^d \times \mathbb{R}^+ \to \mathbb{R}$ is a function that multiplies the curvature $\kappa = \nabla \cdot (\nabla \phi / |\nabla \phi|)$

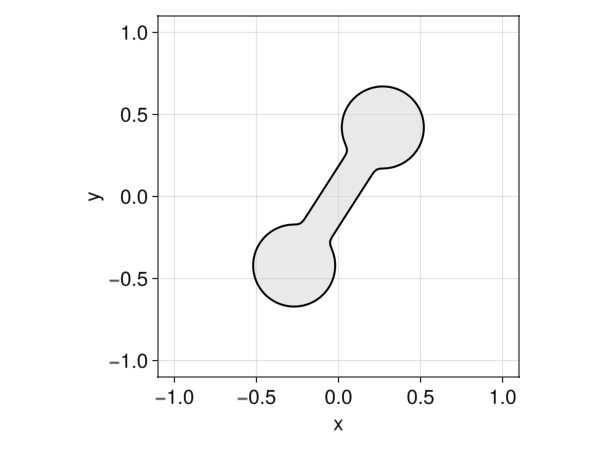

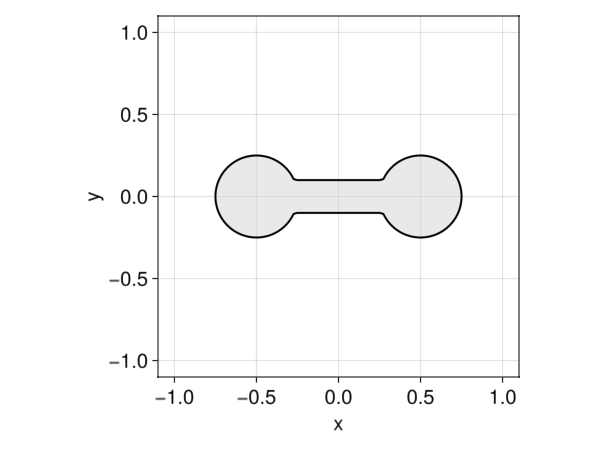

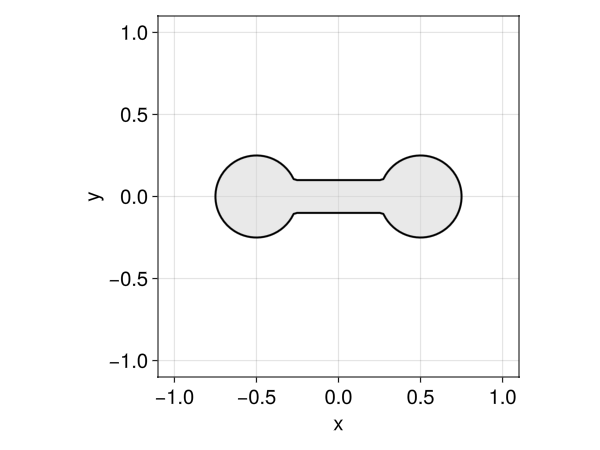

Here is how it looks in practice. We rotate a dumbbell — assembled from two disks and a bar with the set operations of the geometry page — about the origin:

using LevelSetMethods
grid = CartesianGrid((-1, -1), (1, 1), (50, 50))
disk(c) = MeshField(x -> hypot((x .- c)...) - 0.25, grid)
bar = MeshField(x -> maximum(abs.(x) .- (1.0, 0.2) ./ 2), grid)
ϕ = disk((-0.5, 0.0)) ∪ disk((0.5, 0.0)) ∪ bar
𝐮 = (x, t) -> (-x[2], x[1])
eq = LevelSetEquation(; terms = (AdvectionTerm(𝐮),), ic = ϕ, bc = NeumannBC())
LevelSetEquation
  ├─ equation: ϕₜ + 𝐮 ⋅ ∇ ϕ = 0
  ├─ time:     0.0
  ├─ integrator: RK2 (2nd order TVD Runge-Kutta, Heun's method)
  │  └─ cfl: 0.5
  ├─ state: MeshField on CartesianGrid in ℝ²
  │  ├─ domain:  [-1.0, 1.0] × [-1.0, 1.0]
  │  ├─ nodes:   50 × 50
  │  ├─ spacing: h = (0.04082, 0.04082)
  │  ├─ bc:     Neumann (all)
  │  ├─ valtype: Float64
  │  └─ values:  min = -0.2272,  max = 0.868
  ╰─

Loading a Makie backend lets you plot the equation with plot:

using CairoMakie # loads the MakieExt from LevelSetMethods
LevelSetMethods.set_makie_theme!() # optional theme customization
plot(eq)

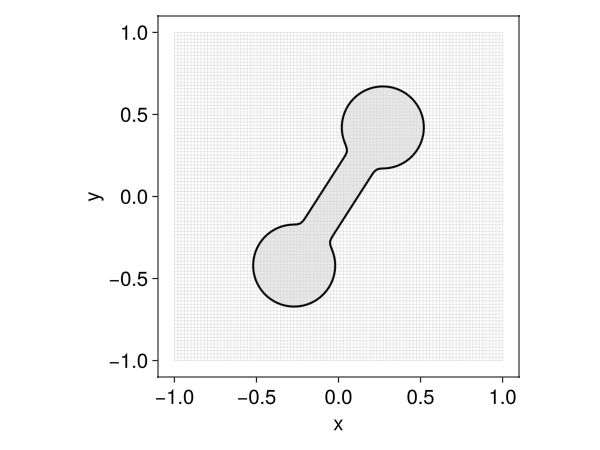

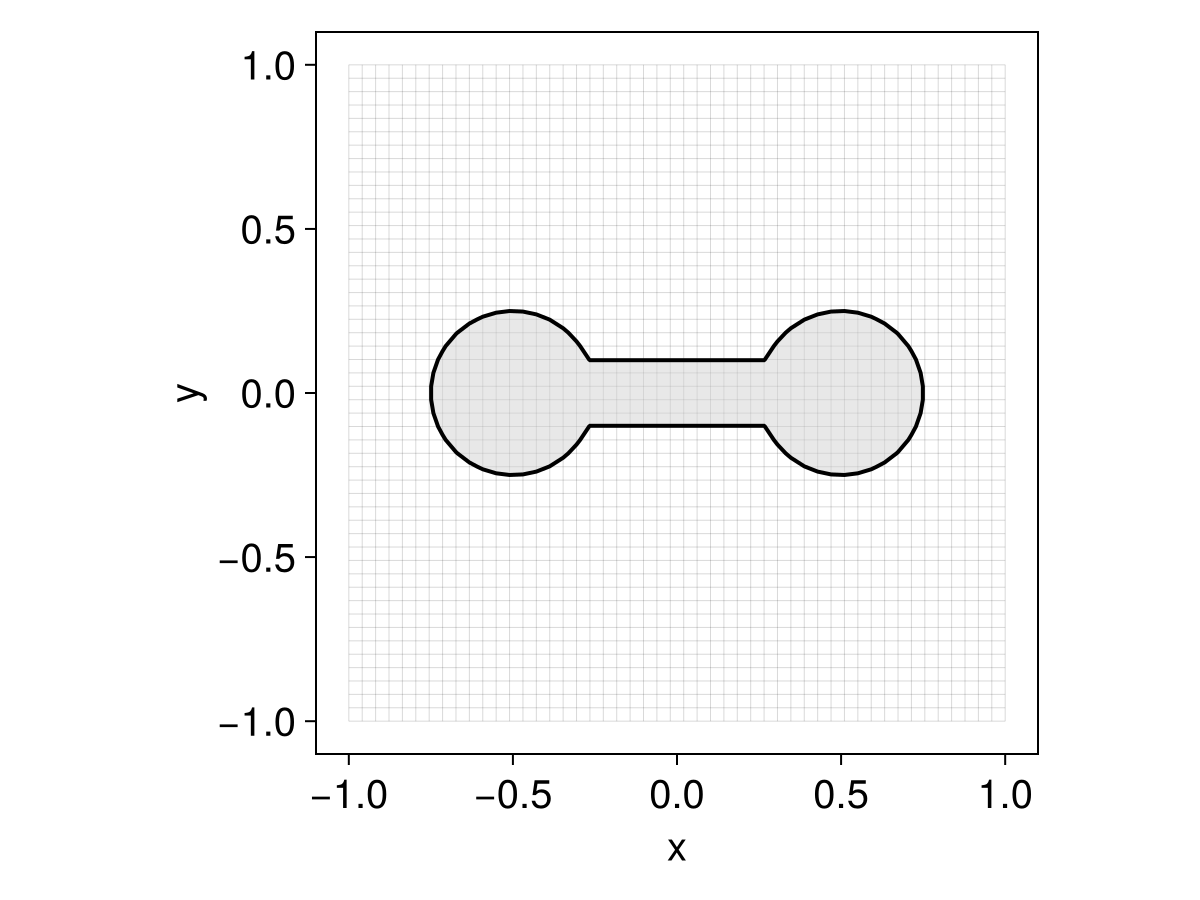

Example block output

integrate! advances the equation in place. Calling it repeatedly at increasing times is the idiom behind animations; we wrap that loop in a small helper that writes the current current_time into the axis title. The recipe only draws the state — Makie recipes cannot set the axis title — so the title is the caller's job; we format it with a fixed two decimals (@sprintf) so its width stays constant and the label does not flicker:

using Printf
function animate(eq, filename; tf = π)
    obs = Observable(eq)
    fig = Figure()
    ax = Axis(fig[1, 1])
    plot!(ax, obs)
    on(obs) do e
        ax.title = @sprintf("t = %.2f", current_time(e))
    end
    record(fig, joinpath(@__DIR__, filename), range(0, tf; step = 1 / 30)) do t
        integrate!(eq, t)
        obs[] = eq
    end
    return nothing
end

animate(eq, "ls_intro.gif")

Dumbbell

Note that ic is copied into the equation, so the field ϕ you passed in is left untouched — the evolving state lives in current_state.

Keeping a signed distance function

Curvature, normals, and narrow bands all behave best when $\phi$ is a signed distance function ($|\nabla\phi| = 1$), a property advection steadily distorts. The usual remedy is to reinitialize between steps by passing a posthook to integrate!:

integrate!(eq, tf; posthook = eq -> reinitialize!(current_state(eq)))

A PDE-based EikonalReinitializationTerm is also available. See Reinitialization for the trade-offs and details.

That same equation runs unchanged on a narrow band. Because the interface fills only a thin region of the domain, storing $\phi$ at every grid node is wasteful — especially in 3D. A NarrowBandMeshField keeps values only on a band of nodes around the interface, and is a drop-in replacement for a MeshField: swap it in as the initial condition and everything else — the terms, the boundary conditions, even the animate call above — stays exactly the same.

nb = NarrowBandMeshField(disk((-0.5, 0.0)) ∪ disk((0.5, 0.0)) ∪ bar; nlayers = 3)
eq_band = LevelSetEquation(; terms = (AdvectionTerm(𝐮),), ic = nb, bc = NeumannBC())
animate(eq_band, "ls_intro_band.gif")

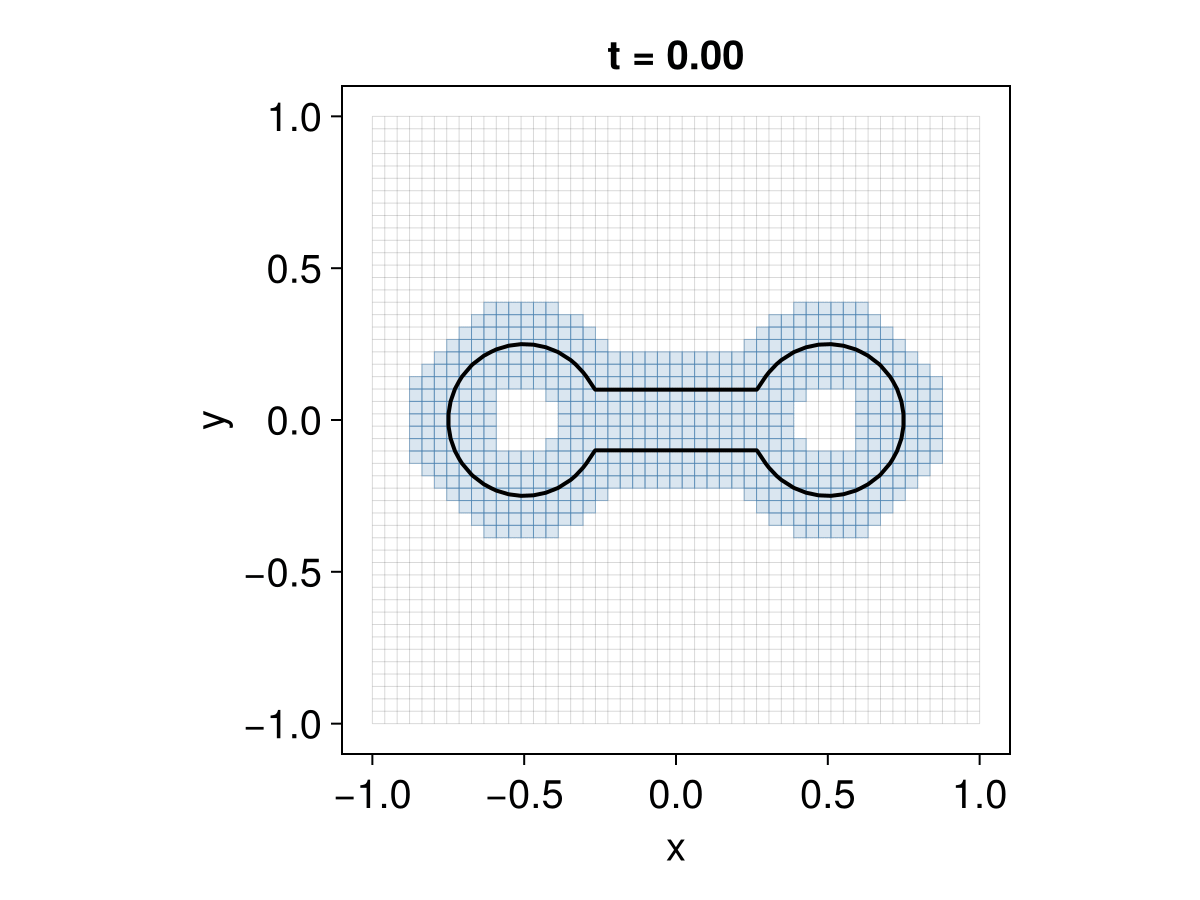

Dumbbell on a narrow band

The recipe shades the active band cells, which travel along with the interface; only those nodes are stored and advanced, so the cost scales with the size of the interface rather than the grid — a substantial saving in 3D. See Narrow-band fields for details.

Other resources

There is an almost one-to-one correspondence between each of the LevelSetTerms described above and individual chapters of the book by Osher and Fedkiw on level set methods [1], so users interested in digging deeper into the theory/algorithms are encouraged to consult that reference. We also drew some inspiration from the great Matlab library ToolboxLS by Ian Mitchell [2].

Extensions

Some features of LevelSetMethods.jl are only available through extensions after loading certain optional dependencies:

Going further

The LevelSetEquation type seen above is the heart of the package, and the rest of the manual is organized around it; its docstrings are worth reading in detail.

The remaining documentation is grouped in the navigation sidebar:

  • Building & solving covers each ingredient of an equation — grids and fields, level sets, terms, time integrators, boundary conditions — one page apiece.
  • Advanced topics goes beyond the basics.
  • Extensions documents the optional features behind extra dependencies (see Extensions above).
  • Examples works through complete applications end to end.

Every exported name is documented in the Reference.
