Level-set equation

The LevelSetEquation is the central object of the package. It bundles everything needed to evolve an interface — the current state $\phi$, the terms that move it, the time integrator, and the boundary conditions — into a single value that you advance in time with integrate!. The equation has the form

\[\phi_t + \sum_n \texttt{term}_n = 0 ,\]

where each $\texttt{term}_n$ is a LevelSetTerm. This page covers how to build an equation, inspect it, and step it forward; the individual terms, integrators, and boundary conditions each have their own chapter.

Building an equation

A LevelSetEquation is constructed with keyword arguments:

using LevelSetMethods
grid = CartesianGrid((-1, -1), (1, 1), (32, 32))
ϕ₀ = MeshField(x -> hypot(x...) - 0.5, grid)   # initial level set: a circle
eq = LevelSetEquation(;
    terms = AdvectionTerm((x, t) -> (-x[2], x[1])), # rotate about the origin
    ic = ϕ₀, # initial condition (copied internally; the original is left untouched)
    bc = NeumannBC(), # boundary conditions
    integrator = RK2(), # time integrator (default)
    t = 0.0, # initial time (default)
)
LevelSetEquation
  ├─ equation: ϕₜ + 𝐮 ⋅ ∇ ϕ = 0
  ├─ time:     0.0
  ├─ integrator: RK2 (2nd order TVD Runge-Kutta, Heun's method)
  │  └─ cfl: 0.5
  ├─ state: MeshField on CartesianGrid in ℝ²
  │  ├─ domain:  [-1.0, 1.0] × [-1.0, 1.0]
  │  ├─ nodes:   32 × 32
  │  ├─ spacing: h = (0.06452, 0.06452)
  │  ├─ bc:     Neumann (all)
  │  ├─ valtype: Float64
  │  └─ values:  min = -0.4544,  max = 0.9142
  ╰─

The keywords are:

  • terms — a LevelSetTerm or a tuple of them. With several terms the equation is their sum; the displayed equation reflects this. See Level-set terms.
  • ic — the initial condition, any mesh field. A dense MeshField gives a full-grid computation; a NarrowBandMeshField gives a narrow-band one (see Narrow-band fields). It is copied on construction, so your original field is left untouched; the evolving state lives in current_state.
  • bc — the boundary conditions. They may instead be carried by ic (built with the bc keyword); supplying both warns and the equation's bc wins. A single condition applies to every face; a per-dimension tuple applies different ones.
  • integrator — the time integrator; defaults to RK2.
  • t — the initial time; defaults to 0.

Passing several terms sums them, and the displayed equation updates accordingly:

LevelSetEquation(;
    terms = (AdvectionTerm((x, t) -> (-x[2], x[1])), CurvatureTerm((x, t) -> -0.01)),
    ic    = ϕ₀,
    bc    = NeumannBC(),
)
LevelSetEquation
  ├─ equation: ϕₜ + 𝐮 ⋅ ∇ ϕ + b κ|∇ϕ| = 0
  ├─ time:     0.0
  ├─ integrator: RK2 (2nd order TVD Runge-Kutta, Heun's method)
  │  └─ cfl: 0.5
  ├─ state: MeshField on CartesianGrid in ℝ²
  │  ├─ domain:  [-1.0, 1.0] × [-1.0, 1.0]
  │  ├─ nodes:   32 × 32
  │  ├─ spacing: h = (0.06452, 0.06452)
  │  ├─ bc:     Neumann (all)
  │  ├─ valtype: Float64
  │  └─ values:  min = -0.4544,  max = 0.9142
  ╰─

Inspecting the state

The equation exposes its parts through accessors. current_time returns the current time, and current_state the mesh field holding $\phi$ at that time:

current_state(eq)
MeshField on CartesianGrid in ℝ²
  ├─ domain:  [-1.0, 1.0] × [-1.0, 1.0]
  ├─ nodes:   32 × 32
  ├─ spacing: h = (0.06452, 0.06452)
  ├─ bc:     Neumann (all)
  ├─ valtype: Float64
  └─ values:  min = -0.4544,  max = 0.9142

The state is a live mesh field: you can index it, compute geometric quantities on it (see Geometric quantities), or pass it to reinitialize!. The underlying CartesianGrid, the tuple of terms, the integrator, and the boundary conditions are likewise available with LevelSetMethods.mesh, LevelSetMethods.terms, LevelSetMethods.time_integrator, and LevelSetMethods.boundary_conditions.

Advancing in time

integrate! evolves the equation up to a final time tf, mutating current_state(eq) and current_time(eq) in place:

integrate!(eq, 0.5)
current_time(eq)
0.5

The internal time step is chosen automatically from a CFL condition that depends on the terms and the integrator, so you only specify where to stop, not how. An optional third argument caps the step from above — useful when an external process (a hook, a coupled solver) must see the solution at least that often:

integrate!(eq, 1.0, 0.01)   # continue to t = 1, with no internal step exceeding Δt = 0.01
current_time(eq)
1.0

Because integrate! is incremental, calling it repeatedly at increasing times steps the same equation forward — the idiom behind animations and the snapshots below:

using CairoMakie
CairoMakie.activate!()
LevelSetMethods.set_makie_theme!()
eq = LevelSetEquation(; terms = AdvectionTerm((x, t) -> (-x[2], x[1])),
                         ic = MeshField(x -> maximum(abs.(x) .- (0.7, 0.3)), grid),
                         bc = NeumannBC())

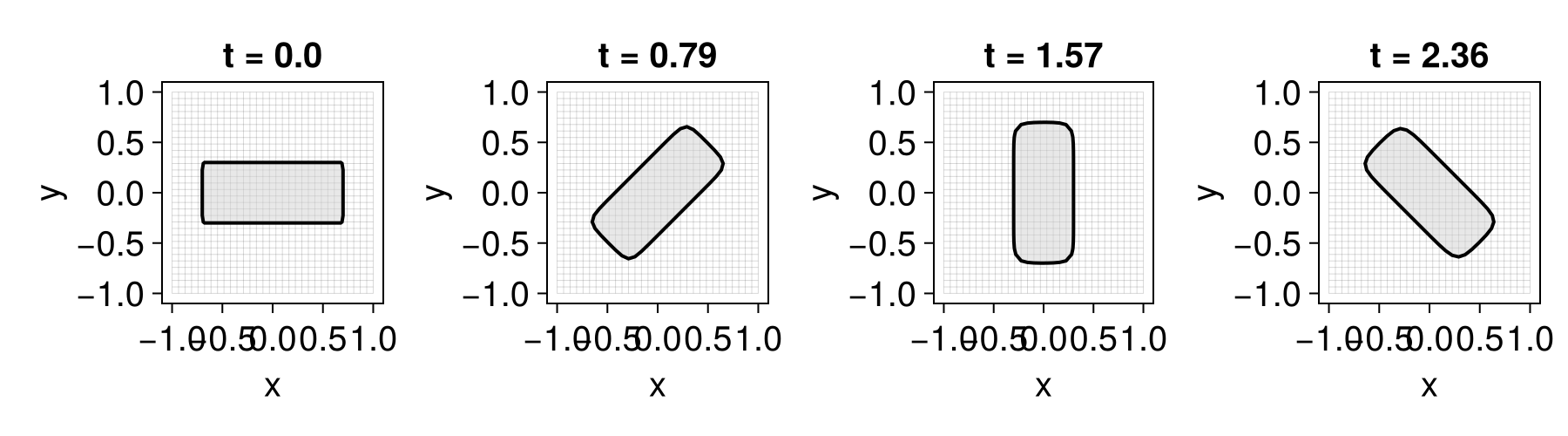

fig = Figure(; size = (900, 250))
for (n, t) in enumerate((0.0, π / 4, π / 2, 3π / 4))
    integrate!(eq, t)
    ax = Axis(fig[1, n]; title = "t = $(round(t; digits = 2))")
    plot!(ax, eq)
end
fig
Example block output

Hooks: customizing each step

Two optional callbacks let you run code around each accepted step (as opposed to each internal Runge–Kutta stage): prehook(eq) runs at the start of a step, before the state is advanced, and posthook(eq) runs after the step has been committed. Both receive the equation with its state and time synced to that point, and both may mutate the state. Their return values are ignored.

The most important use is reinitialization. Keeping $\phi$ a signed distance function is not built into the integrator; you drive it from a posthook (see Reinitialization):

eq = LevelSetEquation(; terms = AdvectionTerm((x, t) -> (-x[2], x[1])), ic = ϕ₀, bc = NeumannBC())
integrate!(eq, π / 2; posthook = e -> reinitialize!(current_state(e)))

Because the hook is an ordinary function, you control when it fires — every step, or gated on a step counter, the elapsed current_time(e), or a measured drift of $|\nabla\phi|$ from one. A posthook is also the natural place for diagnostics. Here we record the enclosed volume after every step and plot its drift from the initial value — a direct measure of how well this divergence-free rotation conserves mass:

eq = LevelSetEquation(; terms = AdvectionTerm((x, t) -> (-x[2], x[1])), ic = ϕ₀, bc = NeumannBC())
V₀ = LevelSetMethods.volume(current_state(eq))
times, errs = Float64[], Float64[]
integrate!(eq, 2π; posthook = e -> begin
    push!(times, current_time(e))
    push!(errs, abs(LevelSetMethods.volume(current_state(e)) - V₀) / V₀)
end)

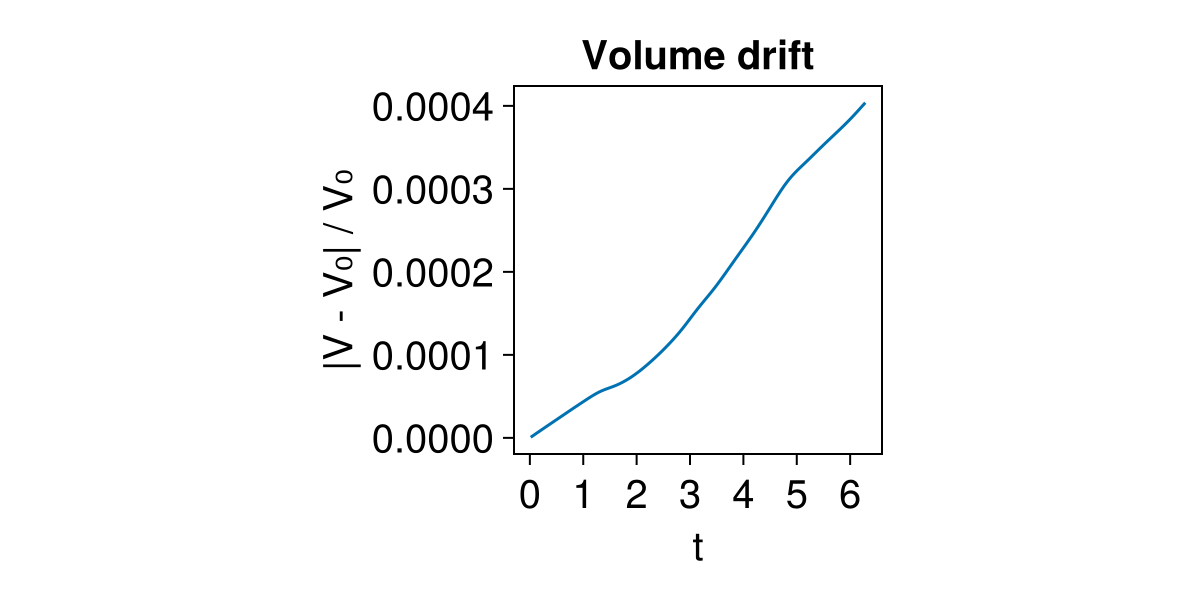

fig = Figure(; size = (600, 300))
ax = Axis(fig[1, 1]; xlabel = "t", ylabel = "|V - V₀| / V₀", title = "Volume drift")
lines!(ax, times, errs)
fig
Example block output

Where to go next
